Horizontal storage racks for long stock are built specifically to hold items like bars, pipes, tubing, and timber. They get these materials off the floor so you can spot what you need quickly and grab it without fuss.

Taking inventory off floor space gives you a massive boost in storage density. You’re making the most of every square metre in your warehouse.

These racks keep everything organised too. All your long items end up segregated and positioned where you can actually reach them, instead of being scattered about or stacked dangerously. This approach cuts down on trip hazards and reduces the chance of handling injuries.

Built for heavy industrial use, horizontal storage racks can handle serious weight and length. They’re brilliant for housing long, awkward items that are otherwise a pain to store properly.

You’ll typically find them with multiple openings or arms to suit different lengths and material types. This design supports heavy, bulky goods whilst letting forklifts and manual handling equipment get in quickly. Less downtime, more efficiency in busy warehouse settings.

Rack types for long steel and timber

Horizontal bar storage racks give you multi-opening units that keep your mix of bar, pipe, and saw drops sorted within one footprint. You can spot what you need at a glance and grab it without hassle, which keeps your warehouse running smoothly.

Models with up to 66 separate openings hold different shapes and sizes of long stock while maximising storage density. Everything stays accessible and separated, plus you’re cutting down on workplace hazards.

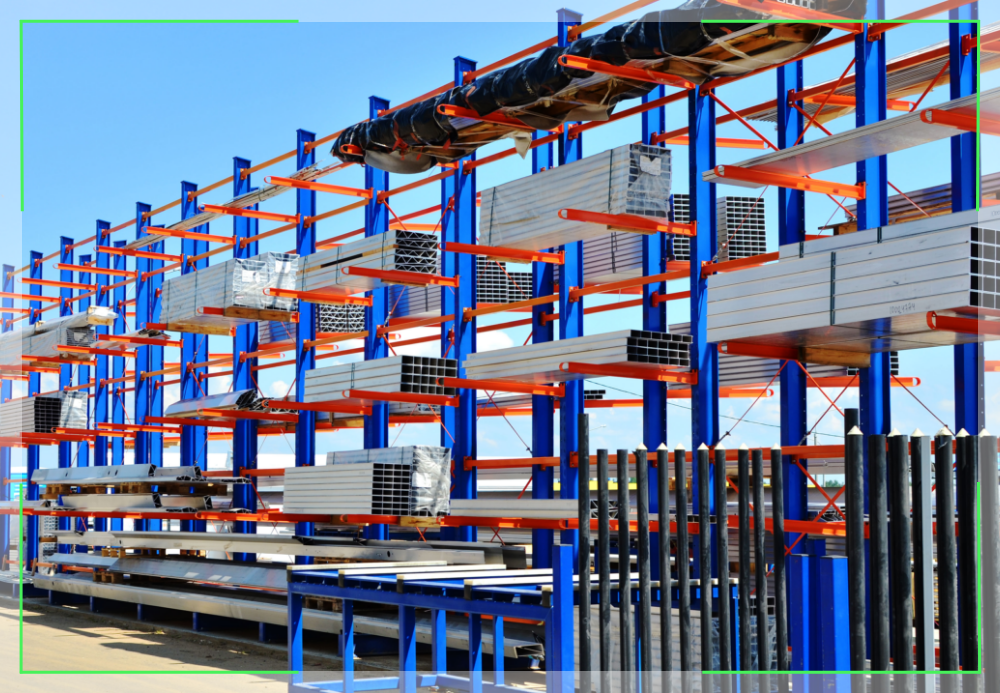

Cantilever racks use modular uprights, arms, and brace sets to support long, heavy bundles of steel, timber, pipe, or tubing. The open design lets you get straight at what you need from the aisle, whether you’re pulling single pieces or entire bundles by hand or with machinery.

Their open sides and adjustable arms work brilliantly in facilities where materials change frequently or you need quick turnaround times.

Your choice between single or double-sided layouts depends on how your aisles are arranged and where you need access. Single-sided racks fit perfectly against walls or in tight spaces, whilst double-sided racks boost your storage capacity and work well in central aisles where you can access both sides.

For your heaviest and longest materials, go for heavy-duty variants built to handle serious loads and repeated use. These sturdy designs stop bending and keep your oversized or particularly heavy steel and timber stock safe for the long haul.

Key components and safety features

A typical cantilever storage system uses three essential parts: uprights, arms, and brace sets. The uprights work as vertical columns, each fixed to the floor with a base for stability.

Brace sets span horizontally between uprights, linking everything together and keeping the structure solid under heavy loads.

Arms support your stored materials and come in two main types. Straight arms give you a flat surface that’s perfect for stable items like timber lengths, steel sheets, or other flat stock.

Inclined arms suit cylindrical materials or anything that might roll, such as pipes or rounds, thanks to their angled design. You can add optional lips to any arm end to stop accidental roll-offs.

The real advantage here is flexibility. Each arm adjusts at roughly 3-inch intervals up the upright, so you can quickly change heights to fit different inventory sizes. Hair pin keepers handle this adjustment, giving you a simple and secure way to move arms about as needed.

For heavy industrial use, steel construction with powder-coated finishes is standard. This setup gives you a long service life with excellent resistance to corrosion, impact, and the general wear you’d expect in tough environments.

Safety features are built right in. Vertical arm tips or added lips act as barriers to stop rounds or bundled stock from rolling off during storage or retrieval.

The open, three-sided access improves handling safety too. Forklifts and manual handlers can approach materials from different angles, cutting down on awkward movements and reducing the risk of dropped loads. This creates a storage setup that’s both efficient and safe for long, heavy items.

Designing capacity and configuration for heavy-duty loads

Determine load data first

Getting your storage system right starts with knowing exactly what you’re storing. You’ll need the complete dimensions and weight of every product going on the racks.

Capture the length, depth, height, and weight of each item. This data lets you specify cantilever arms, uprights, and braces that can handle your maximum loads without any risk of failure.

Your arm length must match or exceed the product depth. A 48-inch deep item needs a 48-inch arm, no exceptions. Anything shorter creates overhang that makes the whole setup unstable.

Work out how many arms you need by checking the product length and whether it sags under its own weight. Too few arms or poor spacing leads to damaged stock and potential rack collapse.

Calculate the total weight per level and spread it evenly across all arms. Double-check that each arm and upright can handle their share of the load.

Don’t forget vertical clearances either. Factor in ceiling height, arm thickness, forklift reach, and any building regulations. Add at least 150mm clearance above each level for safe handling.

Since your needs will probably change, plan for modular expansion right from the start. A good modular system lets you add arms, uprights, or bracing whenever your storage requirements shift. This keeps your setup flexible without forcing you to replace everything when your inventory changes.

Arm count, spacing and deflection control

Each load needs enough cantilever arms to prevent sagging and potential damage. Too few arms cause materials to bend under their own weight, stressing both your stored items and the rack structure.

Test for deflection before finalising your arm setup. Place the load on wooden blocks to represent arms and check for any sag. If two blocks show no deflection, a two-arm system works fine as long as load distribution stays even and within capacity.

When you spot any sagging, add more support. Try three or four blocks until the load stays straight and stable.

Arm spacing matters just as much. Position arms so the load overhang beyond each end arm doesn’t exceed half the distance between adjacent upright centres. Too much overhang at the ends overloads those arms and creates uneven stress that can wreck your rack or damage products.

Work out both arm count and spacing for each specific application using actual product samples or load data. This ensures your setup stays structurally sound and stores materials safely.

Select arm length and type

Arm length for cantilever racks must always match or exceed your load depth. A 24-inch deep bundle needs at least a 24-inch arm, full stop. Anything shorter creates dangerous overhang that destabilises storage and risks material tipping.

You can go longer than the load depth if needed, but never shorter. This rule keeps weight distribution proper and maintains safety standards.

Choosing the right arm type matters just as much for secure storage. Straight arms give you a flat surface that works brilliantly for stable loads like timber planks, metal sheets, or boxed goods.

Inclined arms suit round or cylindrical materials such as pipes or rolled steel. Their angled design stops items rolling off during storage or retrieval, which saves you from chasing runaway materials across the warehouse floor.

Getting both length and type right protects your racking system and stored materials from damage whilst keeping your workplace safer for everyone.

Upright height and clearances

When setting upright height and planning clearances for horizontal storage racks, start by considering the total ceiling height, maximum reach of your forklifts, clearance requirements for sprinkler systems, and any local building codes. This approach ensures your rack system fits safely within your facility and allows for compliant operation.

For each storage tier, always allow at least 150mm (approximately 6 inches) clearance between the top of a stored load and the next arm. This gap is essential for safe handling, ease of loading, and for preventing accidental damage during retrieval.

It also permits uninterrupted airflow and access for fire suppression systems.

Place the heaviest loads directly on the base level of the rack. Doing so doesn’t affect the rated capacity of the uprights and ensures the most stable and secure storage configuration.

This helps distribute weight efficiently and reduces the risk of rack or load instability at higher levels. Proper consideration of all these factors results in a storage system that’s accessible, meets safety standards, and operates efficiently within your warehouse constraints.

Capacity calculations and bracing

Working out arm capacity is straightforward. Divide the total weight stored at each level by the number of supporting arms. Each arm carries an equal share, and none should handle more than its rated limit.

Getting load distribution right across all arms prevents stress points and stops potential failures before they happen.

Upright capacity needs a different calculation. Multiply the number of arms per side by the load on each arm. The upright must handle the combined load from all its arms.

Never let the total rated capacity of all arms exceed what the upright can actually support. Push past that limit and you’re looking at structural failure and safety risks.

Brace length is the centre-to-centre distance between uprights. Get this measurement spot on because it determines which brace sets you need.

Match your brace patterns to both the expected load and the height and span of your uprights. Shorter brace lengths with proper patterns give you better structural rigidity, especially on taller or longer assemblies.

Use the right brace configuration for each upright height and spacing. This keeps everything operating safely and maintains proper load-bearing performance.

Space efficiency, access and safety in operation

Getting long stock off the floor and onto racks dramatically increases your storage density. You’re freeing up precious floor space and making proper use of your vertical warehouse capacity.

This approach improves organisation too. Heavy, awkward materials stay secured and away from walkways, cutting out trip hazards and keeping your workspace safer.

Cantilever arms make forklift operations straightforward. Your operators can directly access each arm for single-piece pickup or full-bundle retrieval without hassle.

This direct access cuts out double handling and reduces manual lifting. You’re saving time on storage and retrieval whilst keeping your team safer.

Horizontal bar rack designs give you open, three-sided access. Operators can approach stock from the front or either side without any obstruction.

This setup speeds up material handling considerably, reduces bottlenecks, and works brilliantly even in tight footprints or narrower aisles.

Built-in safety features prevent stock damage and accidental roll-offs. Vertical arm tips or added lips work as barriers on each arm end, stopping round or bundled items from falling.

Proper support along each material length reduces bending and stress, protecting your stock during storage. Every safety feature contributes to faster, safer, and more space-efficient warehouse operations.

Feature set to prioritise for heavy-duty horizontal racks

When you’re specifying a heavy-duty horizontal rack for demanding industrial use, certain features make all the difference. The frame needs thick-gauge steel with powder coating for maximum load capacity and impact resistance. For environments where corrosion is a concern, galvanised cantilever options deliver better long-term performance.

Adjustable arms with multiple height positions give you the flexibility to handle different stock sizes and weights. Arms should come in various lengths, typically up to 60 inches, so they properly support the full depth of heavy bundles and oversized materials.

Vertical tips or lips at the end of each arm stop materials from rolling off. This safety feature is absolutely essential for cylindrical stock like pipes or rounds.

You can choose between single and double-sided configurations depending on your layout. Single-sided racks work perfectly against walls, whilst double-sided racks increase accessible storage in central aisles.

Modular expandability lets you adapt your storage as inventory requirements change. Look for rack systems that allow additional uprights, arms, and brace sets without taking apart existing structures. This modular approach protects your investment and keeps your storage relevant as operational needs shift.

Three-sided open access speeds up efficiency in most workshops and warehouses. It allows quick forklift or manual loading from the front and both sides, cutting downtime and reducing bottlenecks where floor space is tight.

Multi-opening horizontal bar racks handle a range of shapes and sizes within the same unit. This means varied materials can all be stored without needing multiple rack types, which streamlines organisation and makes better use of your vertical and horizontal space. When selecting the right system for your facility, consider consulting specialists who offer heavy duty storage solutions that meet these demanding requirements.

Installation and layout planning

Each storage bay requires at least two uprights with bases firmly anchored to the floor. Never attach uprights directly to walls, columns, or building structures. This keeps your rack structurally independent and safe.

Your upright spacing, called brace length, needs careful planning based on what you’re storing and deflection control requirements. Getting this spacing right maintains load integrity and rack strength.

Once you’ve set the spacing, choose the right brace pattern for your rack height and span. Different loads and heights need specific bracing configurations to keep everything stable.

Set arm elevations to give enough clearance for stored products and your handling equipment like forklifts. This creates safe and efficient loading whilst protecting materials and machinery.

Plan aisle widths so forklifts and other equipment can safely access the arms. Use the open, three-sided access of cantilever racks to speed up retrieval and make the most of your available space. This approach boosts operational efficiency and supports safe material handling.
